16mm Interlocking Rubber Gym Tiles
- 70% impact absorption and 65% noise reduction, EN 13893 slip certified
- Compact 500mm x 500mm puzzle-edge tiles – four tiles cover exactly 1m²
- High-density recycled SBR rubber at 900 kg/m³, CE & REACH compliant
- Expected commercial lifespan of 12–15 years
How many do I need?Enter your room size and we'll set the quantity and ramp edges
-
Free UK deliveryMainland UK, no minimum order
-
Same-day dispatchOrder before 2pm, Mon–Fri
-
14-day returnsUnused product
-
Secure checkoutEncrypted payment
Not sure which tile? Compare the range
Prices include VAT and free UK mainland delivery.
| Product | Thickness | Size | Key feature | Price per m² | Rating |
|---|---|---|---|---|---|
 EVA Foam Gym Tiles
|
12mm | 610 × 610mm | Anti-Fatigue | £21.50 | ★ 5.0 (34) |
 12mm Interlocking Rubber Gym Tiles
|
12mm | 1m × 1m | Commercial Grade UK | £39.99 | ★ 5.0 (28) |
 16mm Interlocking Rubber Gym TilesYou're viewing this
|
16mm | 500 × 500mm | 70% Impact Absorption | £51.96 | ★ 5.0 (37) |
 17mm Interlocking Rubber Gym Mats
|
17mm | 3ft × 3ft | 200kg Drop Rated | £53.82 | ★ 5.0 (37) |
 20mm Heavy Duty Interlocking Rubber Gym Tiles
|
20mm | 1m × 1m | 400kg Drop Rated | £55.00 | ★ 5.0 (25) |
 20mm Cold-Moulded Rubber Gym Tiles
|
20mm | 1000 × 500mm | Up to 65dB Sound Reduction | £110.00 | ★ 5.0 (25) |
 30mm Heavy-Duty Rubber Gym Tiles
|
30mm | 1m × 1m or 500mm | 200kg+ Drop Rated | £95.00 | ★ 5.0 (31) |
 30mm Acoustic Rubber Gym Tiles
|
30mm | 1m × 1m or 500mm | Up to 75dB Sound Reduction | £75.00 | ★ 5.0 (30) |
Commercial-grade 16mm interlocking rubber gym tiles in the precision 500mm × 500mm puzzle-edge format — delivering 70% impact absorption, 65% noise reduction and EN 13893 slip certification across every training zone. High-density recycled SBR rubber at 900 kg/m³, CE and REACH compliant, with an expected commercial lifespan of 12–15 years. Four tiles cover exactly 1m² — the compact format that handles every room shape, fits around any obstacle and installs perfectly solo at 4.5kg per tile. Matching ramped safety edges available. Same-day dispatch before 2pm, free UK delivery on every order.
70% Impact Absorption — Protecting Joints, Subfloor and Equipment
At 900 kg/m³ and 16mm thick, these tiles absorb 70% of impact force at the point of contact — reducing the energy that reaches your subfloor, your joints and your equipment. This is the figure that matters for cardio equipment, functional training and general gym use: treadmills run smoother, dumbbells land quieter, and the floor beneath stays unmarked through years of commercial-intensity use.
The 70% figure means this tile is rated for all cardio machines including commercial-grade treadmills, functional training including box jumps and plyometrics, dumbbell and kettlebell work, squat racks and cable machines. The high-density SBR rubber compound recovers fully from static point loads — no permanent denting under equipment legs, no compaction over time.
65% Noise Reduction — Train Without Disruption
These tiles reduce impact noise by up to 65% compared to a bare hard floor — making them the correct specification for home gyms in terraced houses, first-floor training rooms and any gym in a shared building where impact noise matters. The combination of 900 kg/m³ density and 16mm rubber depth absorbs the vibration from cardio machines, functional training and general gym activity before it reaches the floor structure.
12–15 Year Commercial Lifespan
16mm at 900 kg/m³ is not a lightweight domestic tile — it is the specification that commercial gym operators across the UK install and leave in place for over a decade of daily use. The high-density SBR compound resists compression, abrasion and UV degradation. Tile edges maintain their puzzle interlock integrity through years of foot traffic and equipment loading. The EN 13893 slip-resistant surface stays grippy under sweat, water and high-footfall commercial traffic. This is a gym floor you install once.

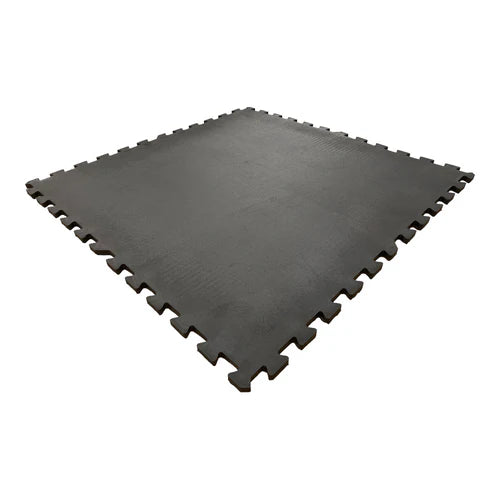

The 500mm × 500mm Format — Precision, Flexibility, Solo-Friendly
At 4.5kg per tile and 500mm × 500mm, every tile is comfortable for one person to carry, position and interlock all day. The compact format navigates door frames, pillar bases, fixed equipment legs and any irregular room shape with minimal waste. Four tiles cover exactly 1m², making quantity calculations instant and layout planning straightforward. The puzzle-edge interlock on all four sides locks tiles together firmly and precisely — no gaps, no drift, no misalignment across the full floor.
Perfect For Every Training Environment
- ✔ All cardio equipment — treadmills, bikes, rowers, cross-trainers, ski ergs, including commercial-grade units
- ✔ Functional training & HIIT — battle ropes, box jumps, plyometrics, agility ladders; EN 13893 surface grips under lateral movement
- ✔ Dumbbells & kettlebells — 70% impact absorption handles controlled use across the full weight range

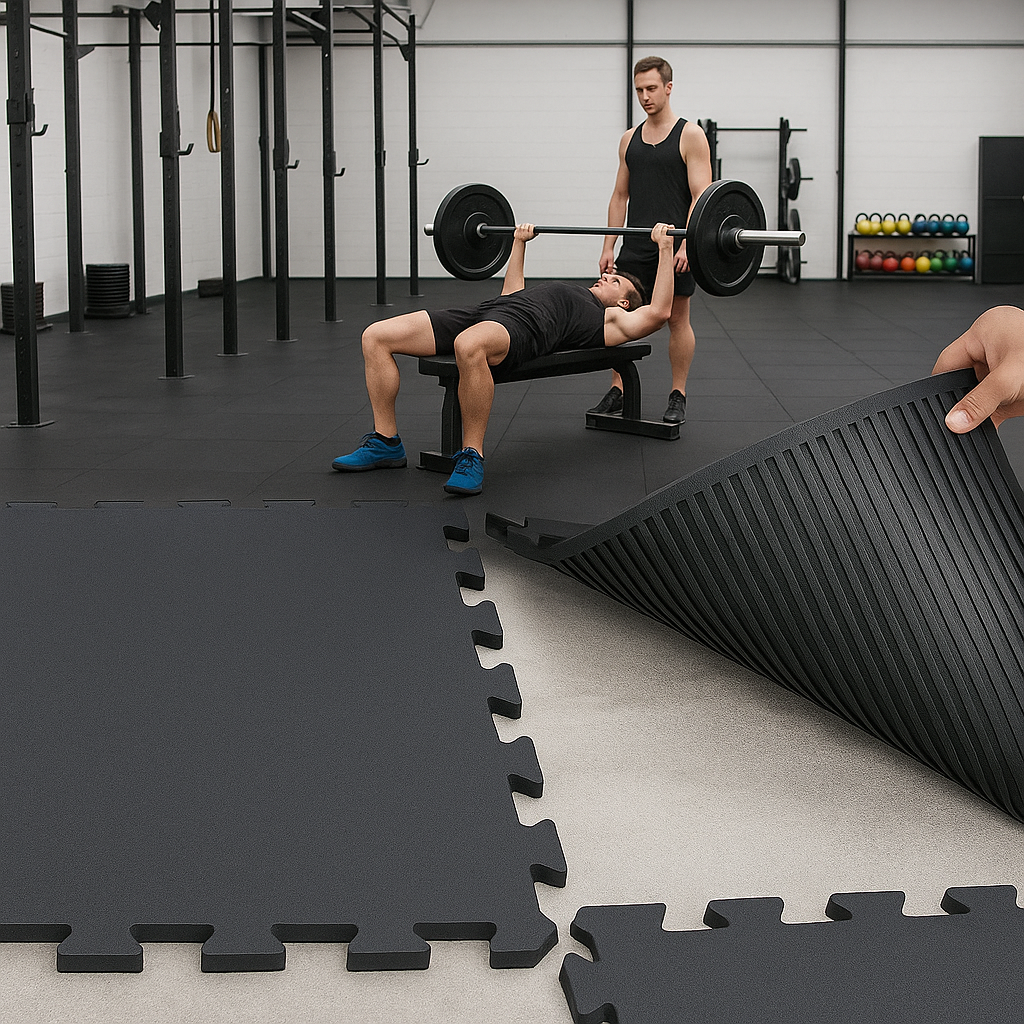

- ✔ Squat racks & cable machines — 900 kg/m³ density resists permanent denting under heavy static equipment loads
- ✔ Home gym rooms — the 500mm format fits any room shape perfectly and installs solo with no specialist tools
- ✔ PT studios & personal training spaces — clean, professional black finish that clients expect in a quality training environment
- ✔ Commercial gym floors — 12–15 year commercial lifespan means this tile pays for itself many times over
- ✔ Hotel gyms & corporate fitness facilities — CE certified, REACH compliant, EN 13893 rated for institutional specification
- ✔ School sports halls & education facilities — the 500mm format allows precise layout around fixed floor markings and obstacles
- ✔ Garage gyms — works perfectly on concrete, screed or timber — no preparation beyond sweeping required
Why GymFlooringUK
| GymFlooringUK | Typical Competitor | |
|---|---|---|
| Impact absorption | ✅ 70% — published figure | ⚠️ Rarely disclosed |
| Noise reduction | ✅ 65% — published figure | ⚠️ Rarely disclosed |
| Commercial lifespan | ✅ 12–15 years — stated | ⚠️ Rarely stated |
| Ramp edges | ✅ 500mm straight & corner available | ⚠️ Often unavailable |
| Free delivery threshold | ✅ No minimum — every order | ❌ Usually £250+ |
| Dispatch speed | ✅ Same-day before 2pm | ❌ Often 3–7 working days |
| Thickness | 16mm (±1mm tolerance) | Tile Size | 500mm × 500mm |
| Coverage | 0.25m² per tile — 4 tiles = 1m² | Weight per Tile | 4.5kg |
| Material | Recycled SBR rubber | Bulk Density | ≈900 kg/m³ |
| Impact Absorption | 70% force reduction | Noise Reduction | Up to 65% |
| Slip Resistance | EN 13893 certified | Compliance | CE, REACH |
| Edge Profile | Puzzle interlock, all 4 sides | Expected Lifespan | 12–15 years commercial use |
| Colour | Black | Installation | Tool-free, no adhesive |
| Subfloor | Concrete, screed, timber, existing hard floor | Delivery | Free UK mainland, same-day before 2pm |
Ramped Safety Edges — Complete the Installation
Matching ramped safety edges are available in 500mm lengths and 580mm corner pieces, ordered using the variant selector above. Ramp edges create a safe bevelled transition on all exposed tile perimeters — doorways, thresholds and any edge where the tiled floor meets a different surface. They complete the installation professionally, eliminate trip hazards and are the correct specification for all commercial gym installations. For permanent ramp edge fixing at high-traffic doorways, a small amount of adhesive at the edge base is recommended.
How Many Tiles Do You Need?
Each tile covers 0.25m² (500mm × 500mm). Calculate your floor area in m², multiply by 4 for tile count, then add 10% for perimeter cuts.
Examples: 3m × 3m room = 9m² × 4 = 36 tiles + 4 spare = 40 tiles. 5m × 4m room = 20m² × 4 = 80 tiles + 8 spare = 88 tiles.
Installation — One Person, No Tools, Same Day
- Acclimatise: Leave tiles flat in the room for 24 hours at 15°C+ — ensures optimal fit and consistent performance across the full floor.
- Prepare subfloor: Sweep and vacuum any clean, dry, level hard floor — concrete, screed, timber or existing hard floor.
- Plan your layout: Start from the centre of the room for equal perimeter cuts, or from the rear wall in a garage gym.

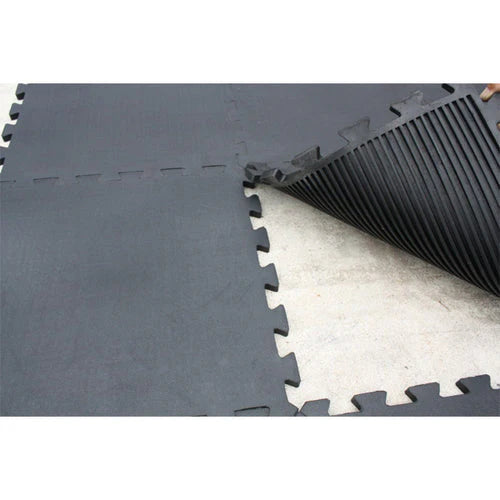

- Press tiles together: Puzzle edges engage by hand at a slight angle, locking firmly into position row by row.
- Cut perimeters: Sharp utility knife with a straight edge for straight cuts (3–4 scoring passes), or jigsaw for curves and complex shapes.
- Fit ramp edges: Install ramped safety edges on all exposed perimeters for a safe, professional finish.
A 20m² room installs in 2–3 hours solo. Tiles lift and relay cleanly without damage — perfect for rented spaces and easily extended as your gym grows.
Free UK mainland delivery on every order — no minimum spend. Smaller orders ship via courier. Larger orders are palletised for safe, secure delivery. 14-day hassle-free returns on unused tiles.
How many tiles do I need?
Each tile is 500mm × 500mm = 0.25m². Multiply your room area in m² by 4 to get tile count, then add 10% for perimeter cuts. A 3m × 3m room = 9m² × 4 = 36 tiles + 4 spare = 40 tiles.
Do I need adhesive?
No — the puzzle interlock edges and tile weight keep the floor completely stable under all normal gym use. No adhesive, no fixings, no specialist tools required. For permanent ramp edge fixing at high-traffic doorways, a small amount of adhesive at the edge base can optionally be used.
What subfloors are compatible?
Concrete, screed, timber and any existing solid hard floor. No subfloor preparation beyond sweeping clean is needed. These tiles work equally well in garages, dedicated gym rooms, converted spaces and commercial facilities.
Can I install these myself?
Yes — at 4.5kg per tile the 500mm format is designed for comfortable solo installation all day. No specialist tools, no adhesive, no trades. A 20m² room installs in 2–3 hours by one person.
Can I use these in a flat or upstairs room?
Yes — 65% noise reduction makes these tiles the right specification for home gyms in shared buildings, terraced houses and first-floor training rooms. The rubber absorbs the vibration from cardio machines and general training before it reaches the floor structure.
Will the tiles damage my floor underneath?
No — no adhesive, no residue, no damage. The tiles also protect your subfloor from equipment scuffs, dents and scratches. They lift cleanly if you move home or reconfigure your gym.
Can I get a free sample?
Yes — feel the 16mm density and puzzle edge quality before ordering your full floor. Request your free sample here.
Do you offer trade or bulk pricing?
Yes — we supply commercial gym operators, PT studios, schools, leisure centres and fit-out contractors. Contact our commercial team for a bulk quote, typically within 24 hours.
What Gym Owners & Installers Say
Independent reviews collected through Loox from customers who bought this product.
Came securely packaged and arrival was much faster than expected. The tiles are now lining the workout area in our rehabilitation centre, and on first sight they looked remarkably solid and well-crafted. They clicked together easily, forming a sturdy base that fits the space neatly. After a couple of weeks in place, Im appreciating how effectively this rubber gym flooring absorbs impacts during sessions with patients while also keeping the noise down—a real plus when therapy rooms are nearby.
Installed it in our clinics exercise area last week. The build quality of these gym floor tiles is top-notch, with an impressive thickness that provides stability and enough padding for comfort. Weve put it through its paces, and its held up without a scuff or ding under heavy equipment. Two busy physiotherapy sessions down, and its already proving excellent at dampening noise from resistance band exercises. A solid investment for any high-traffic facility.
Wasnt sure at first how these would hold up in our small hotel gym, but they ended up being spot on. We installed them under the treadmills and bikes, and not only do they grip brilliantly, but they also give the whole floor a polished, professional finish that I didnt expect. These tiles have held their own against daily wear as well; no marks or cracks to be seen so far, despite heavy use by our guests. Theyre a fab mix of durable and stylish — ideal for making everything look and feel sturdy without compromising on appearance.
