Thickness Guide
Which thickness do I need?
4–6mm — Cardio, treadmills, yoga. Light floor protection.
10–12mm — Home gyms, dumbbells up to 30kg. Great all-rounder. Most Popular
16–17mm — Commercial gyms, heavy free weights, CrossFit.
20–30mm — Olympic lifting, deadlift platforms. Maximum protection.
Not sure? Ask our experts
✔️ 20mm Heavy Duty Rubber | ✔️ EN 13893 / R10 Certified | ✔️ CE & REACH

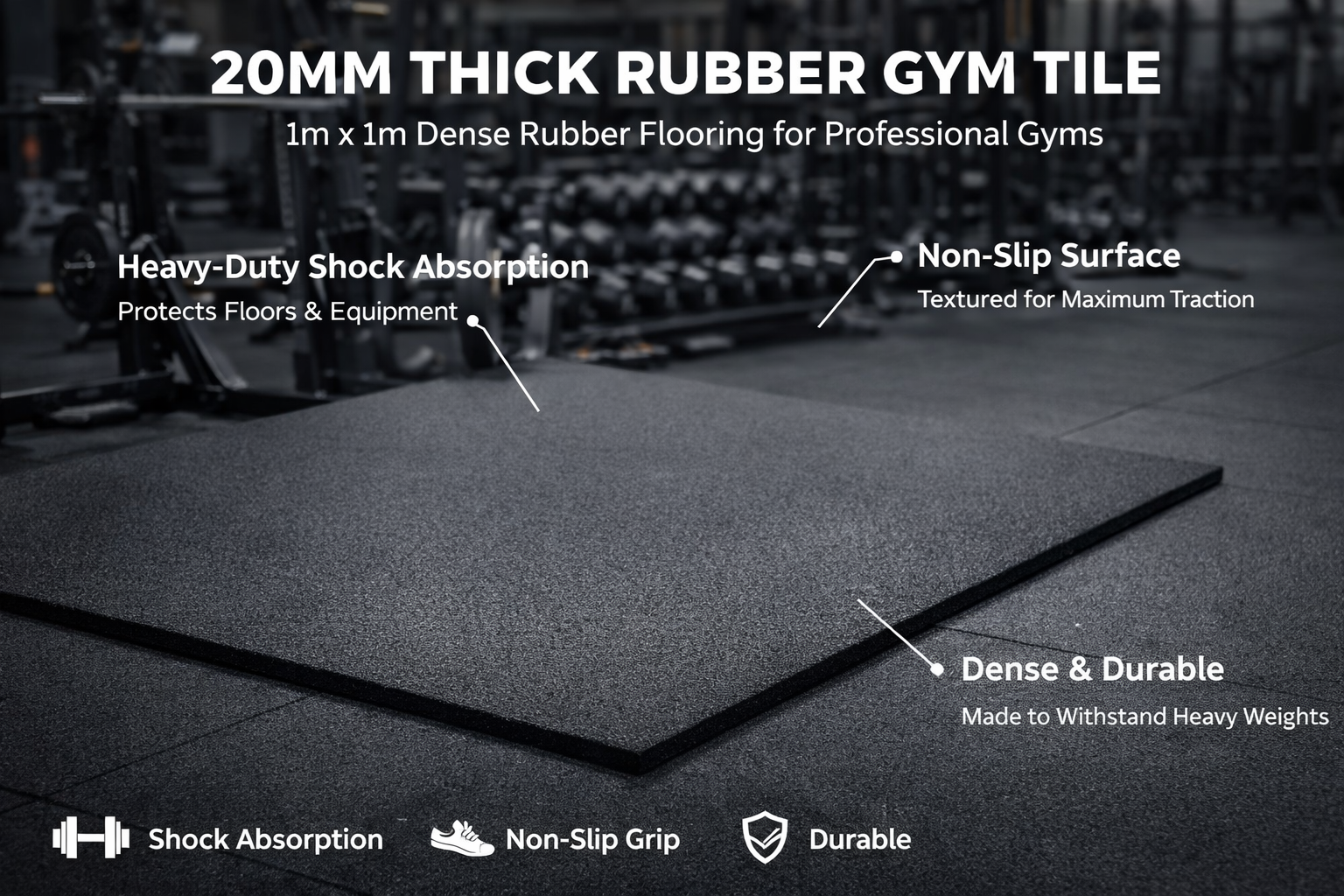

The benchmark 20mm rubber gym flooring tile for the UK market — 400kg/m² static rated, R10 slip certified, CE and REACH compliant. Trusted in home gyms, PT studios, CrossFit boxes, hotel gyms and commercial weight training facilities across the UK.
Why Choose These Tiles?
- ✅ 400kg/m² static load — no permanent compression under any standard gym equipment
- ✅ R10 certified — wet and dry slip resistance for all training conditions
- ✅ 1.1–1.3 g/cm³ density — the premium density that separates commercial from budget tiles
- ✅ CE & REACH certified — commercial and residential compliance
- ✅ 1m² per tile — 20m² gym installed in under 2 hours, one person
| Specifications | |
|---|---|
| Thickness | 20mm |
| Tile Size | 1000mm × 1000mm (1m²) |
| Coverage | 1m² per tile |
| Material | High-density rubber |
| Density | 1.1–1.3 g/cm³ |
| Static Load | 400 kg/m² |
| Slip Resistance | R10 — wet and dry |
| Certifications | CE Certified, REACH Compliant |

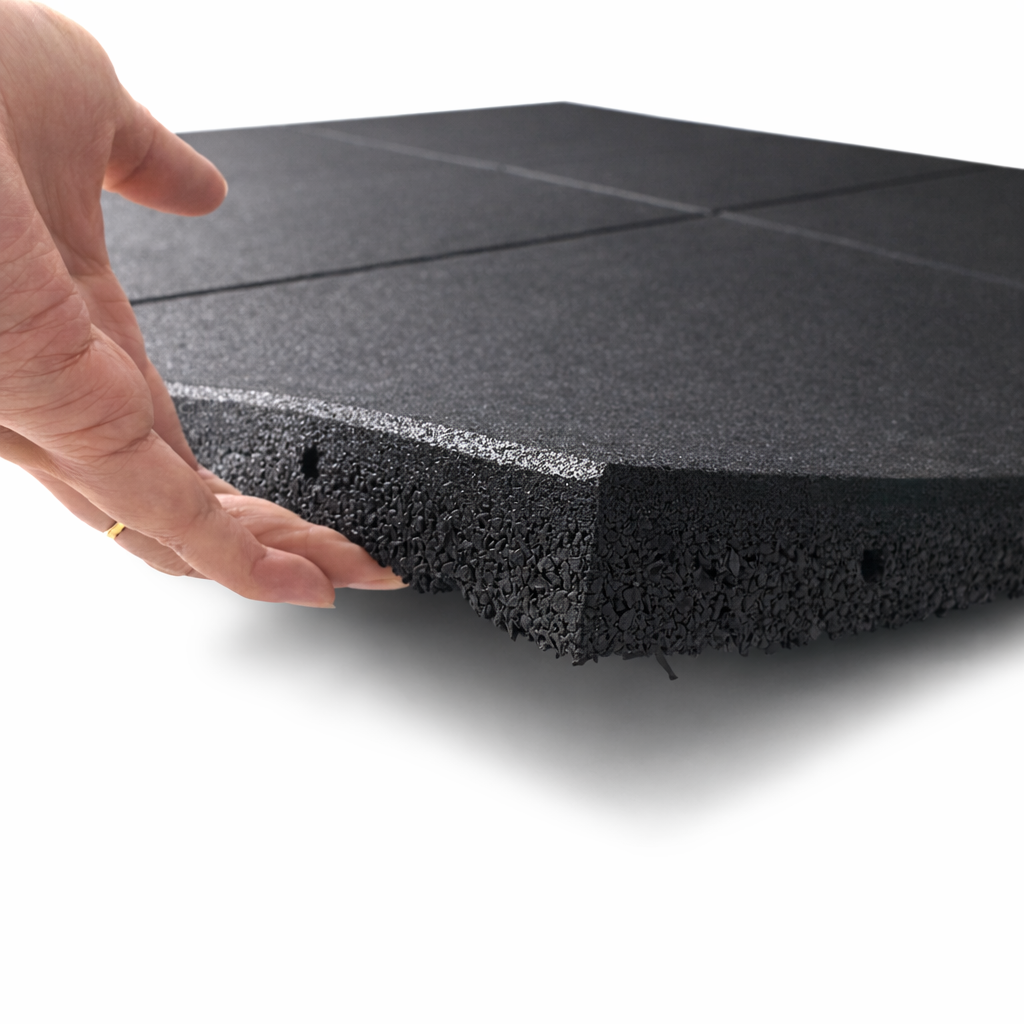

| Installation | Butt-jointed — no adhesive |
How Many Tiles Do You Need?
Each tile covers 1m². Tile count = room area in m² + 10% waste.
| Area | m² | Tiles (inc. 10%) |
|---|---|---|
| 4m × 5m gym | 20 m² | 22 tiles |
| 6m × 8m studio | 48 m² | 53 tiles |
| 8m × 10m commercial | 80 m² | 88 tiles |
✔️ Free UK mainland delivery on all orders. Same-day dispatch before 2pm.
Complete Range
- 16mm Tiles — general weights areas
- 20mm Tiles — heavy free weights, CrossFit
- 30mm Tiles — Olympic lifting, 200kg+ drops
Frequently Asked Questions
Q: What makes these rubber gym tiles suitable for use across different types of gym?
A: These 20mm rubber gym tiles combine a 400kg/m² static load rating, R10 slip resistance, CE and REACH certification, and a durable 1.1–1.3 g/cm³ density rubber construction. This specification makes them equally suited for home gyms, commercial fitness centres, CrossFit boxes, school sports facilities, and PT studios across the UK.
Q: How large are the tiles and what is the coverage per tile?
A: Each tile measures 1000mm × 1000mm (1 metre square), providing exactly 1m² of floor coverage per tile. This simple sizing makes it easy to calculate your order: measure your floor area in square metres and order that quantity of tiles. Add 5–10% extra for rooms where cuts are required around walls, pillars, or doorways.
Q: Are these tiles safe to install over concrete, wood, and existing floor surfaces?
A: Yes. These tiles can be laid directly over concrete, plywood, hardwood floors, laminate, and most existing smooth floor surfaces. Ensure the subfloor is clean, dry, and reasonably level before installation. The butt-joint system allows quick loose-lay installation without adhesive in most applications.
Q: Do these tiles meet UK and European safety standards?
A: Yes. These tiles carry CE marking, indicating conformity with European safety standards, and are REACH compliant, confirming they are free from restricted chemical substances. The R10 slip resistance rating meets the requirements for fitness and sports environments under relevant European and UK standards.
Q: How long do rubber gym tiles typically last?
A: High-quality 20mm rubber gym tiles of this specification typically last 10–20 years in normal gym use when properly maintained. The dense rubber construction resists compression set, surface wear, and chemical degradation. Regular cleaning and occasional resealing (if desired) will maintain appearance and performance throughout their service life.
Q: What is the best way to clean and maintain rubber gym floor tiles?
A: Sweep or vacuum regularly to remove dust, chalk, and debris. Mop weekly with warm water and a pH-neutral cleaner. Avoid harsh solvents, bleach, and oil-based products which can damage the rubber surface. Allow tiles to dry naturally after wet cleaning. With routine maintenance, the surface texture and anti-slip properties are preserved for years.
Need Advice? Speak to a Flooring Specialist
Not sure which thickness, format or quantity is right for your project? Our flooring specialists are here to help — commercial quotes, sample requests and installation advice all available.
🧮 Flooring Calculator
Enter your room size and pick a product to see exactly what you need.
